Crest HD Stair Lift Outdoor



Crest HD Stair Lift Outdoor
$2,895.00
Plus Shipping
Free Shipping
  • Warranty Info

    1 year on batteries
    2 years on parts
    5 years on drive train, motor and circuit board
Product Review
(0)
(0)


The Crest HD Stair Lift Outdoor comes to you at a low price but feature rich.
  • ETL listed A17.5 / B44 - A18.1
  • Heavy duty canvas cover
  • Outdoor powder coating
  • Sealed switches and waterproof connections
  • Rack and pinion drive
  • Interior gear rack
  • 25 to 45 degree angle applications
  • Quick adjustment limit cams
  • Folds to 12.5" from the wall
  • Chassis weight 40 lbs.
  • Track weight for 8' section 36 lbs.
  • Wireless seat control
  • Wireless remote controls for upper and lower landings
  • 15' track standard, additional sections available
  • Chassis mounted auxiliary control switch
  • Obstruction audio beep notification
  • Battery operated system
  • Low profile stair-hugger track and bracket design – 2-1/2" track rest on stairs
  • Constant pressure controls
  • 3" to 6" horizontal extension at top landing (depending on angle)
  • 90 degree swivel seat assembly at top landing
  • ANODIZED aluminum rail
  • Black, Gray, Beige or Brown upholstery
  • Seat belt
  • Folding arm rest
  • Proudly made in the USA!


Outdoor Stair Lifts are not intended for use in snow and ice

* CT, MI and WA customers please check your local inspection regulations for stair lifts.

Drive TypeRack and Pinion
Battery PoweredYes
Self InstallableNo
Basic Installation IncludedNo
Standard Capacity350 lb
Max Track Length, Standard15'
Track MaterialAnodized Aluminum
Track Width6.5"
Swivel SeatYes
Flip-Up SeatYes
Flip-Up ArmrestsYes
Call Stations Included2
Constant Pressure ControlsYes
Footrest Safety SensorNo
Warranty1 year on batteries, 2 years on parts, 5 years on drive train, motor and circuit board
Swivel Seat Rotation90 Degrees at top landing
Rail Angle, Min25°
Rail Angle, Max45°
Digital Diagnostics DisplayNo
Key LockNo
Shipping Info
Shipping Weight
Shipping Length
Shipping Width
Shipping Height
  • Stair Lift Orientation

    • No Image
      Right
      $0.00
      spacer
    • No Image
      Left
      $0.00
      spacer

  • Upholstery Color

    • Black
      Black
      $0.00
      spacer
    • Walnut
      Walnut
      $0.00
      spacer
    • Caramel
      Caramel
      $0.00
      spacer
    • Gray
      Gray
      $0.00
      spacer

  • Seat Width

    • No Image
      Standard
      $0.00
      spacer
    • No Image
      Arms Extended 2" on Either Side
      $230.00
      spacer

  • Chassis / Track Custom Color

    • No Image
      Chassis Custom Color
      $310.00
      spacer
    • No Image
      RAL Color for Chassis Powder Coat
      $0.00
      spacer
    • No Image
      Track Custom Color
      $462.00
      spacer
    • No Image
      RAL Color for Track Powder Coat
      $0.00
      spacer

  • Track Length

    • No Image
      Standard 15' Of Track
      $0.00
      spacer
    • No Image
      Additional Track (Per Foot) (More Than 1' of Additional Track Incurs Additional Shipping Cost)
      $75.00
      spacer

  • Stair Lift Measurements According to Measurement Guide

    • No Image
      Step 1 - Total Staircase Length
      $0.00
      spacer
    • No Image
      Step 2 - Top Landing to Bottom Step
      $0.00
      spacer
    • No Image
      Step 3 - Stair Width
      $0.00
      spacer
    • No Image
      Step 4 - Available Space at Bottom
      $0.00
      spacer
    • No Image
      Step 5 - Height of One Step
      $0.00
      spacer
    • No Image
      Step 6 - Length of One Tread
      $0.00
      spacer
    • No Image
      Step 7 - One Step Front Edge to Front Edge
      $0.00
      spacer
    • No Image
      Step 8 - Available Space at Top
      $0.00
      spacer

  • Options

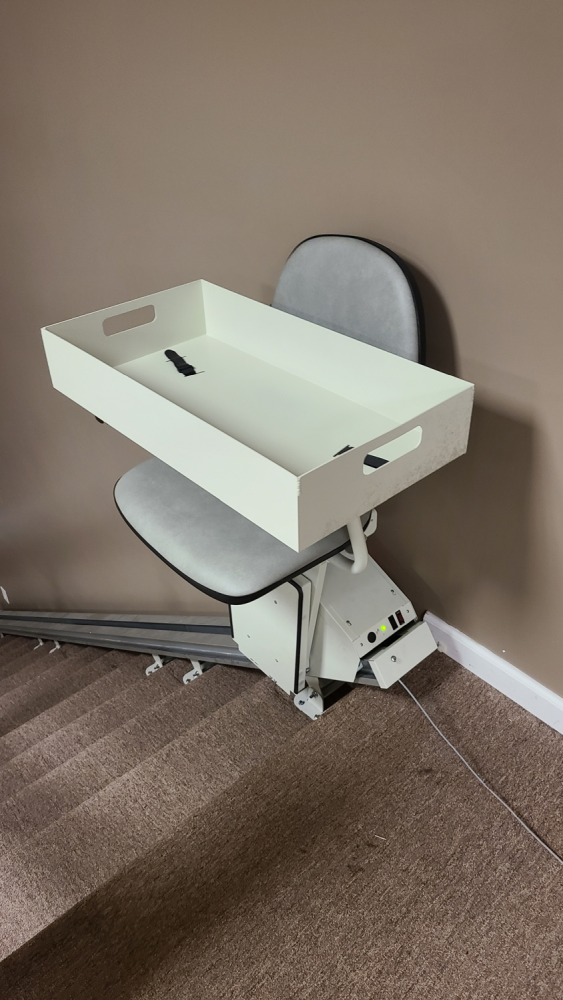

    • Cargo Tray Add-On
      Cargo Tray Add-On
      $230.00
      spacer
    • No Image
      Wall Mounted Call/Send Controls (set)
      $154.00
      spacer
    • No Image
      Additional Key Fob Remote
      $77.00
      spacer
    • No Image
      Additional Standard Brackets
      $38.00
      spacer
    • No Image
      Tall Brackets
      $39.00
      spacer
    • No Image
      Extra Splice Bar
      $23.00
      spacer
    • No Image
      Key Switch
      $77.00
      spacer
    • No Image
      Lockable Battery Disconnect
      $77.00
      spacer
    • No Image
      Bluetooth Controller
      $124.00
      spacer

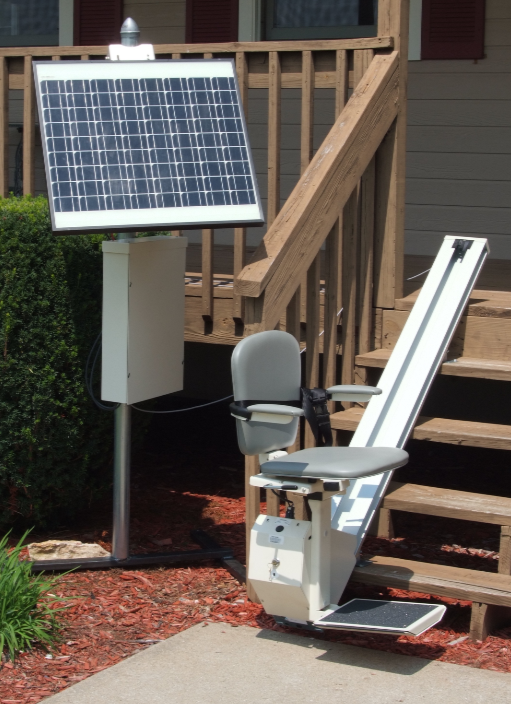

    • Crest HD Solar Power Unit
      Solar Power Unit
      $1,495.00
      spacer

  • Installation

    • No Image
      Self-Install
      $0.00
      spacer
    • No Image
      Nationwide Installation Service
      $599.00
      spacer
    • No Image
      Double Stair Lift Installation Service - Per Stair Lift
      $875.00
      spacer
    • No Image
      Nationwide Measurement and Installation
      $749.00
      spacer
    • No Image
      Stair Lift Removal and Disposal
      $499.00
      spacer

  • Installation Special Cases

    • No Image
      Installation In Remote or Limited Access Location
      $285.00
      spacer
    • No Image
      Installation On Concrete, Steel, or Tile Stairs
      $300.00
      spacer

  • Shipping

    • No Image
      Additional Shipping Charge for Unit with More Than 16' of Track
      $154.00
      spacer
    • No Image
      Shipping to Alaska or Hawaii (Call for Price)
      $0.00
      spacer

spacer
This product currently has no reviews. Would you like to leave one?

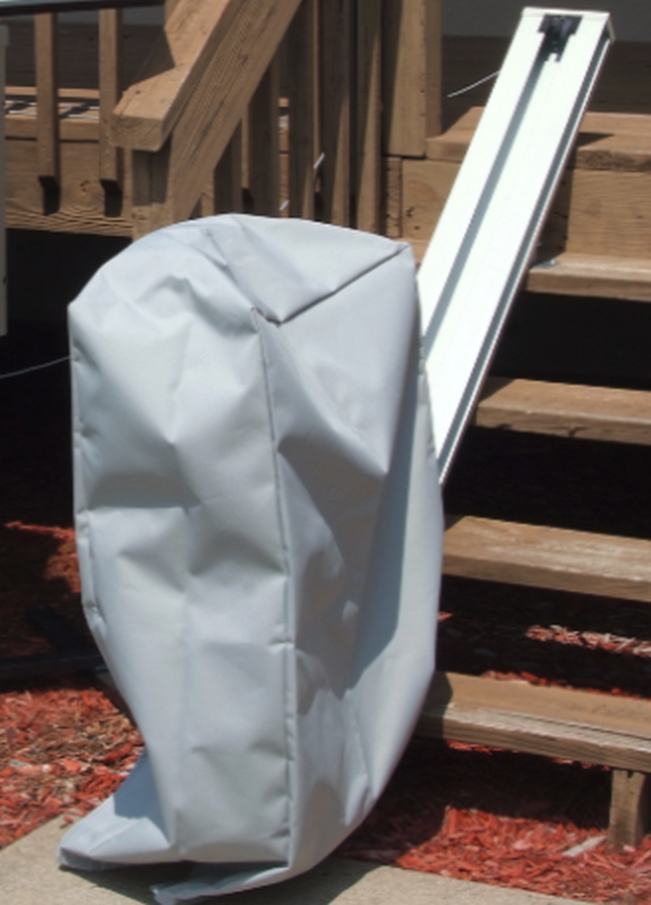

Lift shown with outdoor cover

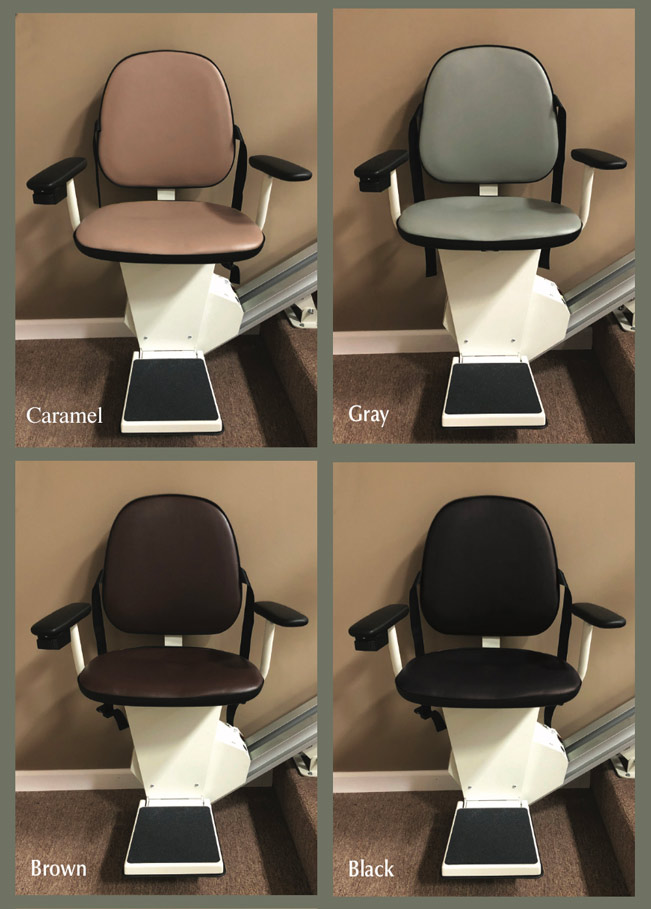

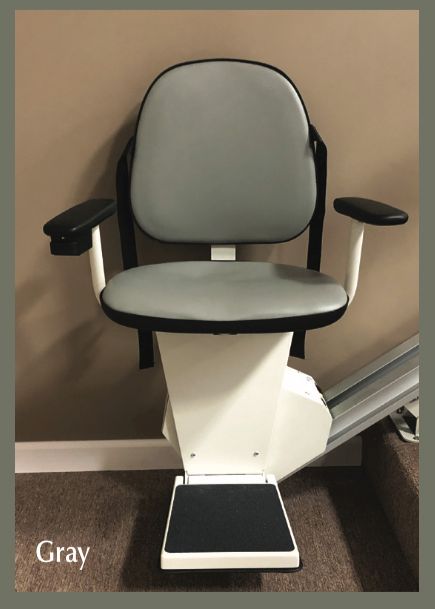

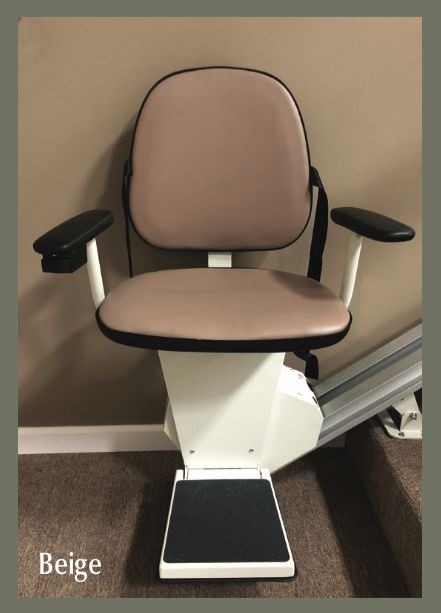

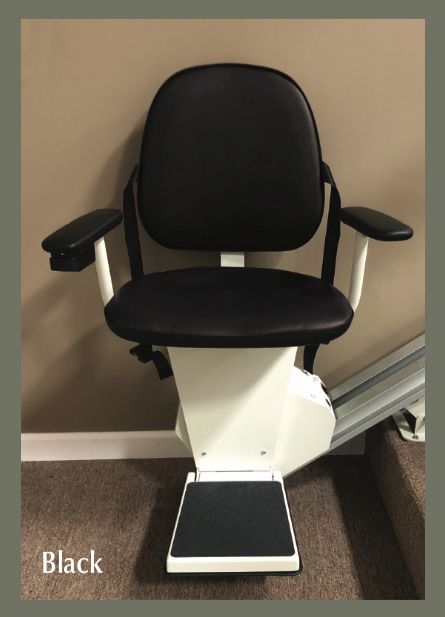

Lift shown in 4 colors: Beige, Gray, Brown, Black

Stair Lift Measuring Guide
