Warranty Info
5 years on the motor gear box
2 years on components

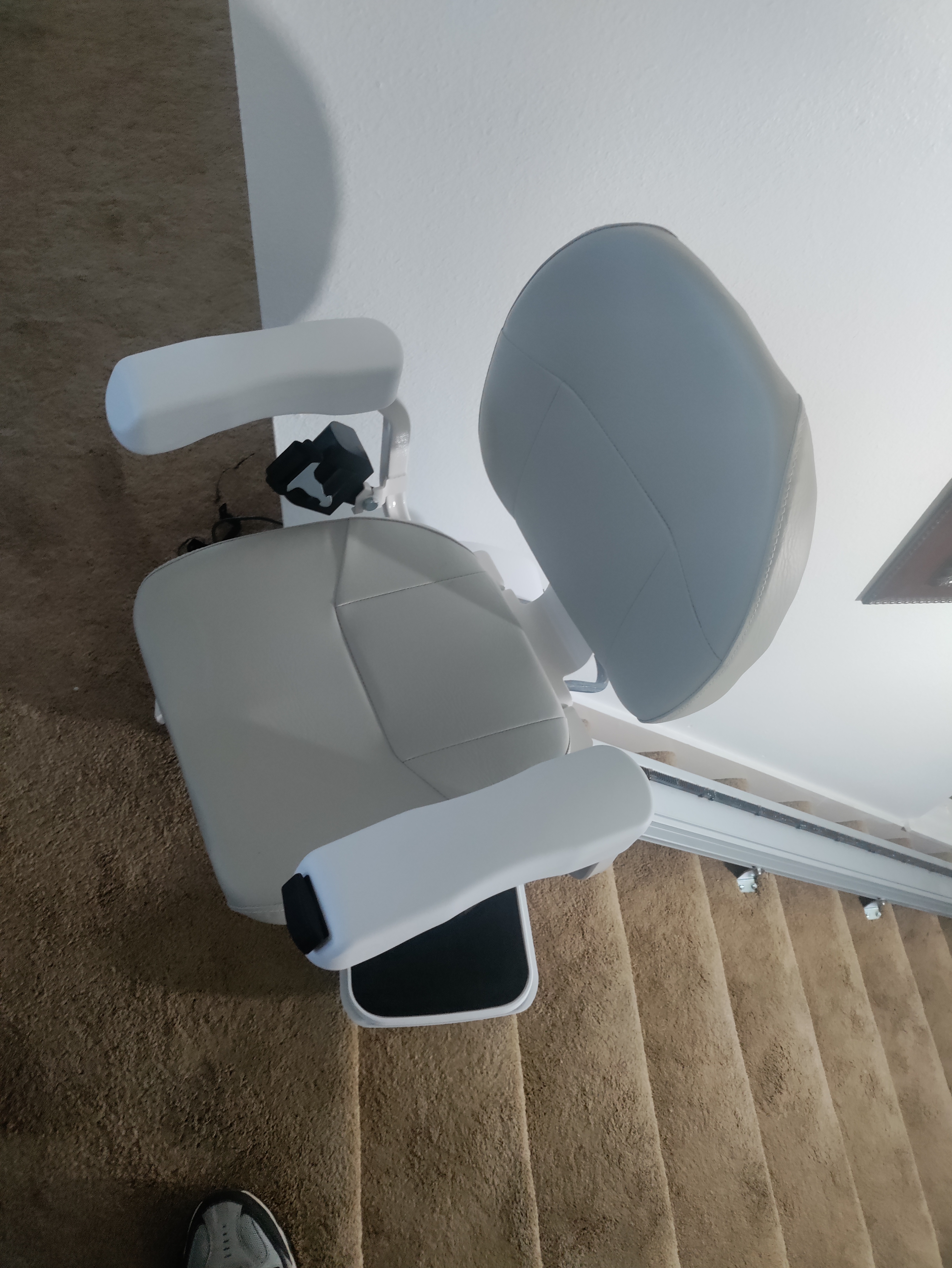

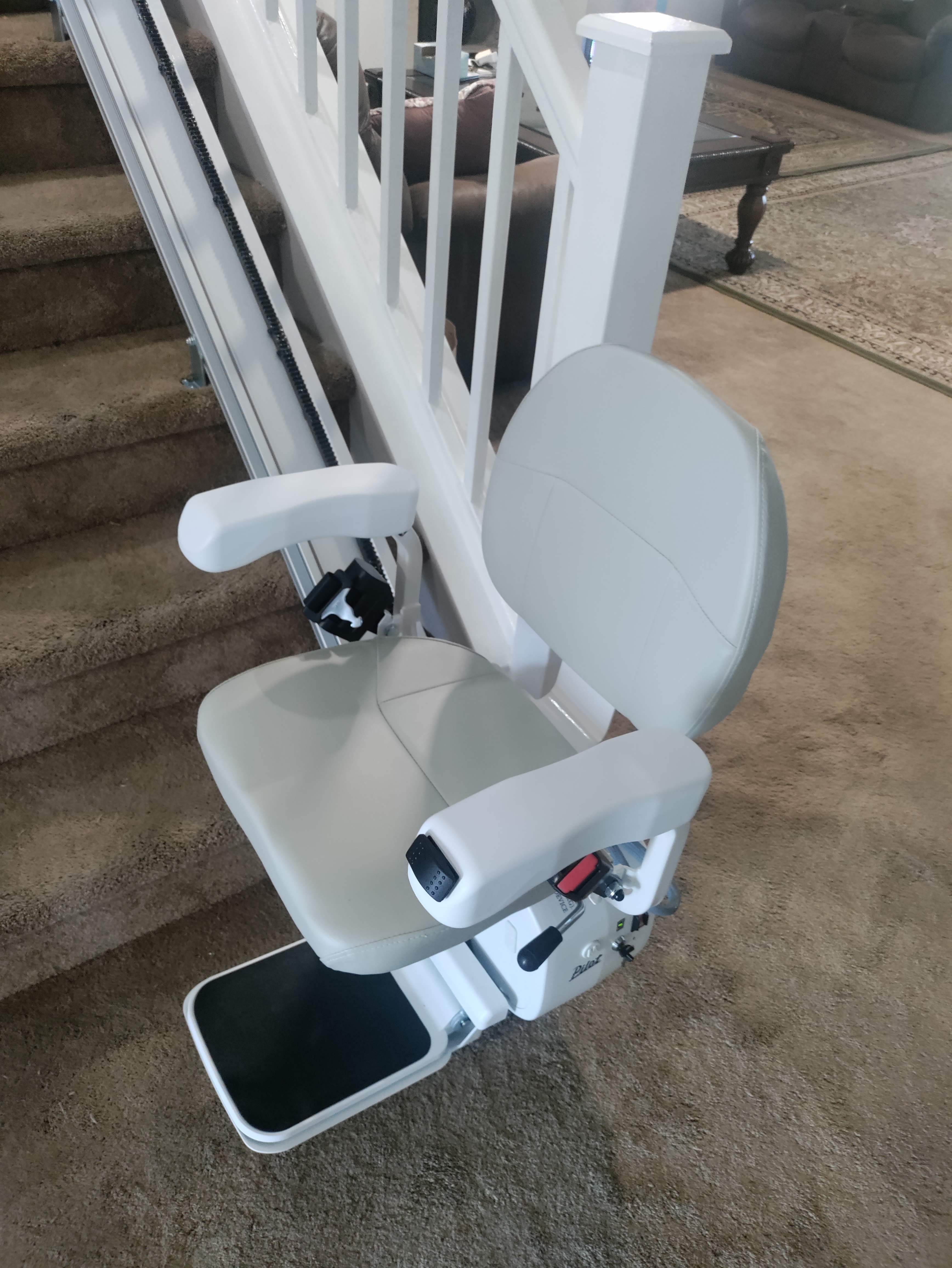

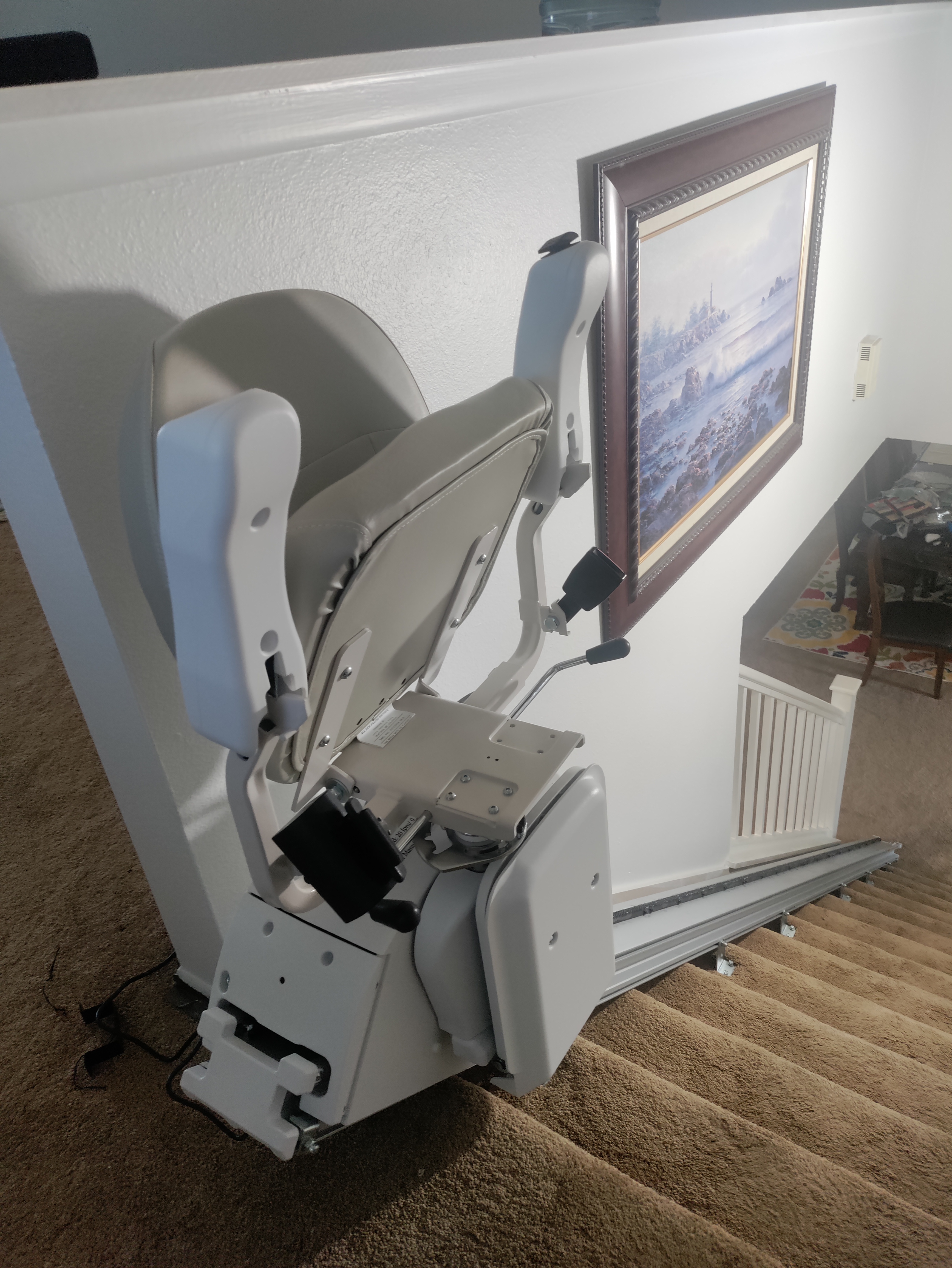

The Crest HD Stair Lift offers exceptional versatility, functionality, an automatic hinged rail, and robust safety. It is a heavy-duty unit with a 350 lb. capacity and its universal design allows left or right-side installation, with adjustable armrest width, seat height, and toggle position. A 2-position swivel seat ensures safe transfers.
Functionality is enhanced by extra-long charging stations for its powerful 9Ah batteries. In a power outage, automatic sleep mode preserves batteries for up to 20 days. The Crest HD includes a battery test point, diagnostic display, and easy-access panels for fast servicing. Safety is standard, featuring 5 directional sensors, a retractable seat belt, armrest and seat position sensors, an over-speed governor, electro-mechanical brake, and a key switch. The automatic hinged rail is a key optional feature.
Note: Capacity is derated to 300lbs if installed at 46 to 55 degree angle or adding the hinged rail option.
Functionality is enhanced by extra-long charging stations for its powerful 9Ah batteries. In a power outage, automatic sleep mode preserves batteries for up to 20 days. The Crest HD includes a battery test point, diagnostic display, and easy-access panels for fast servicing. Safety is standard, featuring 5 directional sensors, a retractable seat belt, armrest and seat position sensors, an over-speed governor, electro-mechanical brake, and a key switch. The automatic hinged rail is a key optional feature.
Note: Capacity is derated to 300lbs if installed at 46 to 55 degree angle or adding the hinged rail option.
Outdoor Stair Lifts are not intended for use in snow and ice
* CT, MI and WA customers please check your local inspection regulations for stair lifts.
| Drive Type | Rack and Pinion |
| Battery Powered | Yes |
| Self Installable | Yes |
| Basic Installation Included | No |
| Standard Capacity | 350 lb |
| Max Track Length, Standard | 16' |
| Max Track Length, Optional | 32' |
| Unit Footprint, In Use | 23" |
| Unit Footprint, Parked | 13" |
| Seat Width | 16" |
| Seat Depth | 16.36" |
| Swivel Seat | Yes |
| Flip-Up Seat | Yes |
| Flip-Up Armrests | Yes |
| Call Stations Included | 2 Wireless |
| Constant Pressure Controls | Yes |
| Footrest Safety Sensor | Yes |
| Swivel Seat Rotation | 90 Degrees at top landing |
| Seat Width, Max | 20" |
| Rail Angle, Min | 25° |
| Rail Angle, Max | 55° |
| Digital Diagnostics Display | Yes |
| Key Lock | Yes |
| Shipping Info | |
|---|---|
| Shipping Weight | |
| Shipping Length | |
| Shipping Width | |
| Shipping Height | |
Stair Lift Orientation (Looking Up the Stairs)
- Right$0.00
- Left$0.00
Upholstery Color
Beige$0.00
Light Brown$0.00
Dark Brown$0.00
Red$0.00
Track Length
- Standard 16' Of Track$0.00
- Additional 8' Section of Track$384.00
- Track Custom Cut to Length$0.00
Stair Lift Measurements According to Measurement Guide
- Step 1 - Total Staircase Length$0.00
- Step 2 - Top Landing to Bottom Step$0.00
- Step 3 - Stair Width$0.00
- Step 4 - Available Space at Bottom$0.00
- Step 5 - Height of One Step$0.00
- Step 6 - Length of One Tread$0.00
- Step 7 - One Step Front Edge to Front Edge$0.00
- Step 8 - Available Space at Top$0.00
Options
Hinge Rail$834.00- Power Swivel Seat$1,476.00
- 6" Extended Indoor Brackets (each)$9.00
- 8' Charging Cable Extension$15.00
- Extended Footplate Kit - 2"$167.00
- Extended Seat Post Kit - 2"$42.00
Installation
- Self-Install$0.00
- Nationwide Installation Service$599.00
- Double Stair Lift Installation Service - Per Stair Lift$875.00
- Nationwide Measurement and Installation$749.00
Installation Special Cases
- Installation In Remote or Limited Access Location$285.00
- Installation On Concrete, Steel, or Tile Stairs$300.00
- Additional Charge for Installation in the States of: New York, and Massachusetts$150.00
- Existing Stair Lift Removal$499.00
Shipping
- Additional Shipping Charge for Unit with More Than 16' of Track$154.00
- Shipping to Alaska or Hawaii (Call for Price)$0.00
