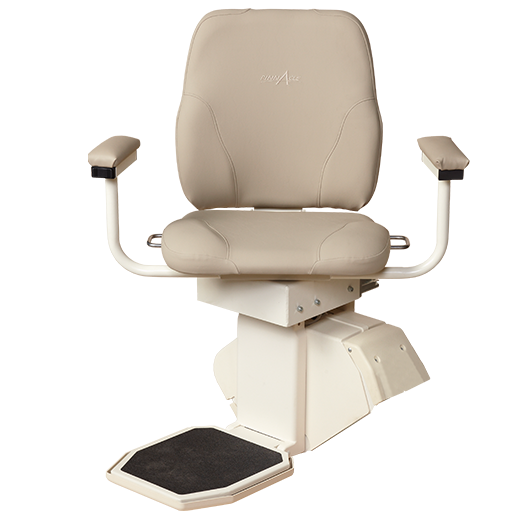

Harmar Pinnacle Stair Lift HD




The Pinnacle Heavy Duty Stair Lift offers a high-backed, contoured 24" wide seat which ensures a comfortable and secure ride. The sturdy, stationary armrests and reinforced footrest add stability for safer transfers. It slides out from wall as it pivots at top landing. As with all Pinnacle stair lifts, the HD model is engineered to the highest industry standards and designed for optimal comfort, convenience and aesthetics. Extending the many benefits of the Pinnacle’s patented Worm Drive, this stair lift features a premium ride, little to no maintenance, comfortable seating, and ease of access with a 85 degree swivel - and, with extraordinary lifting capacity.


Outdoor Stair Lifts are not intended for use in snow and ice

* CT, MI and WA customers please check your local inspection regulations for stair lifts.

Drive TypeHelical Worm Drive
Battery PoweredYes
Self InstallableYes
Basic Installation IncludedNo
Standard Capacity600 lb
Max Track Length, Standard15.5'
Max Track Length, Optional40'
Track MaterialClear Anodized Aluminum
Seat Width24"
Seat Depth16"
Swivel SeatYes
Flip-Up SeatYes
Flip-Up ArmrestsNo
Call Stations Included2 Wireless
Constant Pressure ControlsYes
Footrest Safety SensorYes
Warranty3-Year on Components, 10-Year on Rack , 1-Year on Batteries
Rail Angle, Min32°
Rail Angle, Max52°
Digital Diagnostics DisplayNo
Key LockYes
Shipping Info
Shipping Weight
Shipping Length
Shipping Width
Shipping Height
  • Track Lengths Selection: 15' (180") is Standard *

    • option_name
      * Actual track is 7" longer. A 7" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.
      $0.00
      spacer
    • No Image
      15' (180") of Track
      $0.00
      spacer
    • No Image
      Length in inches if Shorter than 180" (allow +7" for entry/exit)
      $0.00
      spacer

  • Additional Track (Maximum 70' Including the 15' Standard Track)

    • No Image
      Up to 3' of Additional Track
      $250.00
      spacer
    • No Image
      Up to 5' of Additional Track
      $393.00
      spacer
    • No Image
      Up to 7'9" (93") of Additional Track
      $536.00
      spacer

  • Additional Brackets (comes with standard)

    • No Image
      Standard Brackets
      $29.00
      spacer
    • No Image
      Tall Brackets
      $29.00
      spacer

  • Options

    • No Image
      Track Cut to Custom Length (Required for any track cut)
      $143.00
      spacer
    • No Image
      Key Lock on Chasis
      $143.00
      spacer
    • No Image
      Seatbelt Extension
      $100.00
      spacer
    • No Image
      Manual Lowering Tool
      $50.00
      spacer

  • Call Stations

    • No Image
      Top & Bottom Call-Send Stations
      $0.00
      spacer

  • Orientation (looking UP the staircase)

    • No Image
      The stair lift will be on the left
      $0.00
      spacer
    • No Image
      The stair lift will be on the right
      $0.00
      spacer

  • Installation

    • No Image
      NOTE: We do not perform installations in Oregon. For residents in Oregon, please choose self-installation at checkout
      $0.00
      spacer
    • No Image
      Self Installation
      $0.00
      spacer
    • No Image
      Nationwide Installation
      $599.00
      spacer
    • No Image
      Nationwide Installation and Measurement Service
      $749.00
      spacer
    • No Image
      Double Stair Lift Installation Service - Per Stair Lift
      $875.00
      spacer
    • No Image
      Stair Lift Removal and Disposal
      $499.00
      spacer

  • Installation Special Cases

    • No Image
      Installation On Concrete, Steel, or Tile Stairs
      $300.00
      spacer
    • No Image
      Installation In Remote or Limited Access Location
      $285.00
      spacer

  • Measurements

    • No Image
      Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.
      $0.00
      spacer
    • No Image
      1. Overall length
      $0.00
      spacer
    • No Image
      2. Top stair to bottom stair
      $0.00
      spacer
    • No Image
      3. Staircase width
      $0.00
      spacer
    • No Image
      4. Bottom clearance
      $0.00
      spacer
    • No Image
      5. Rise of one step
      $0.00
      spacer
    • No Image
      6. Tread of one step
      $0.00
      spacer
    • No Image
      7. Diagonal
      $0.00
      spacer
    • No Image
      8. Door at the top
      $0.00
      spacer
    • No Image
      Need help measuring? Please see our "How to Measure" page.
